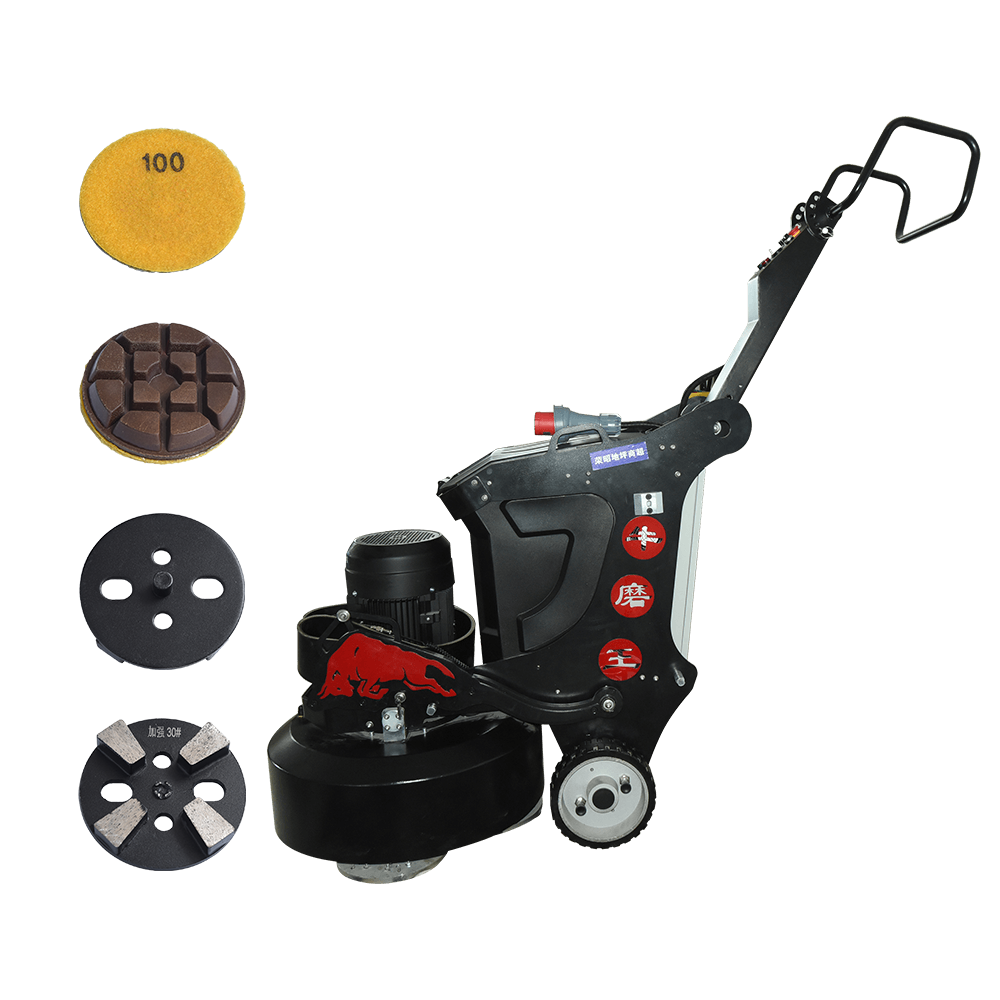

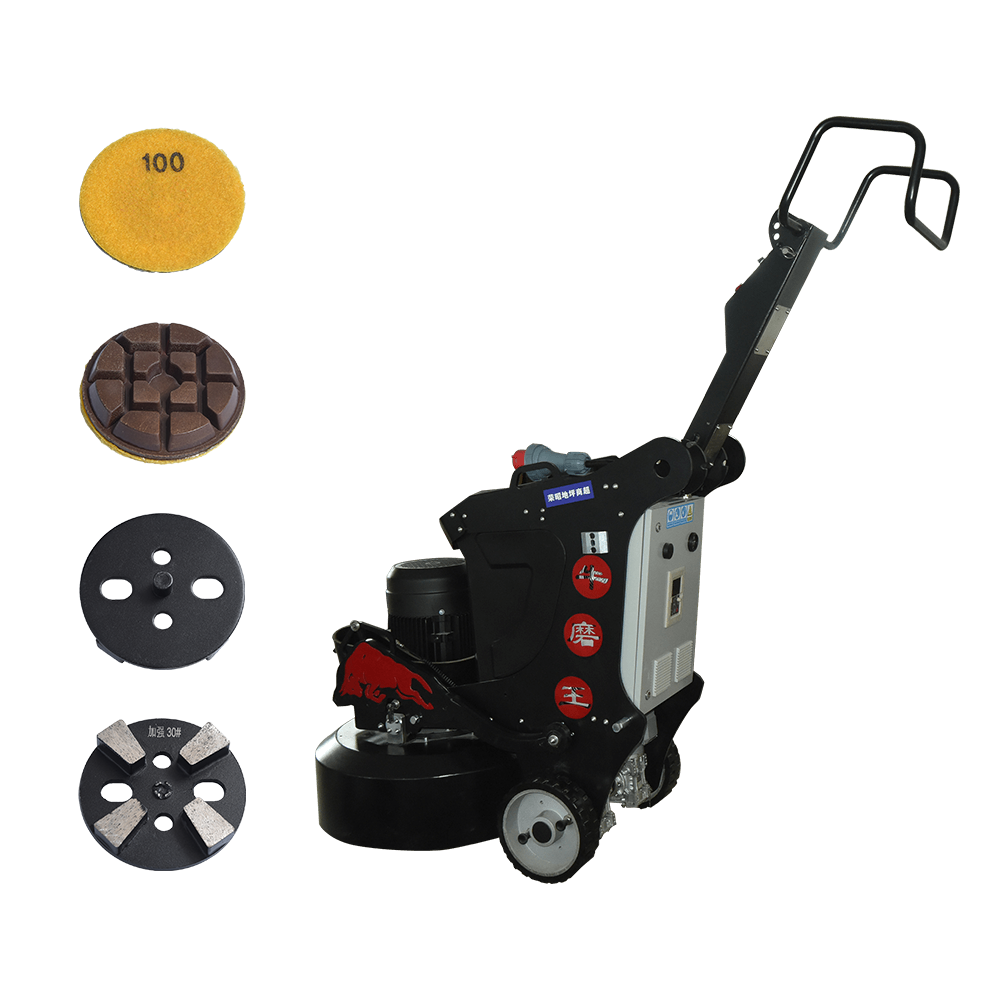

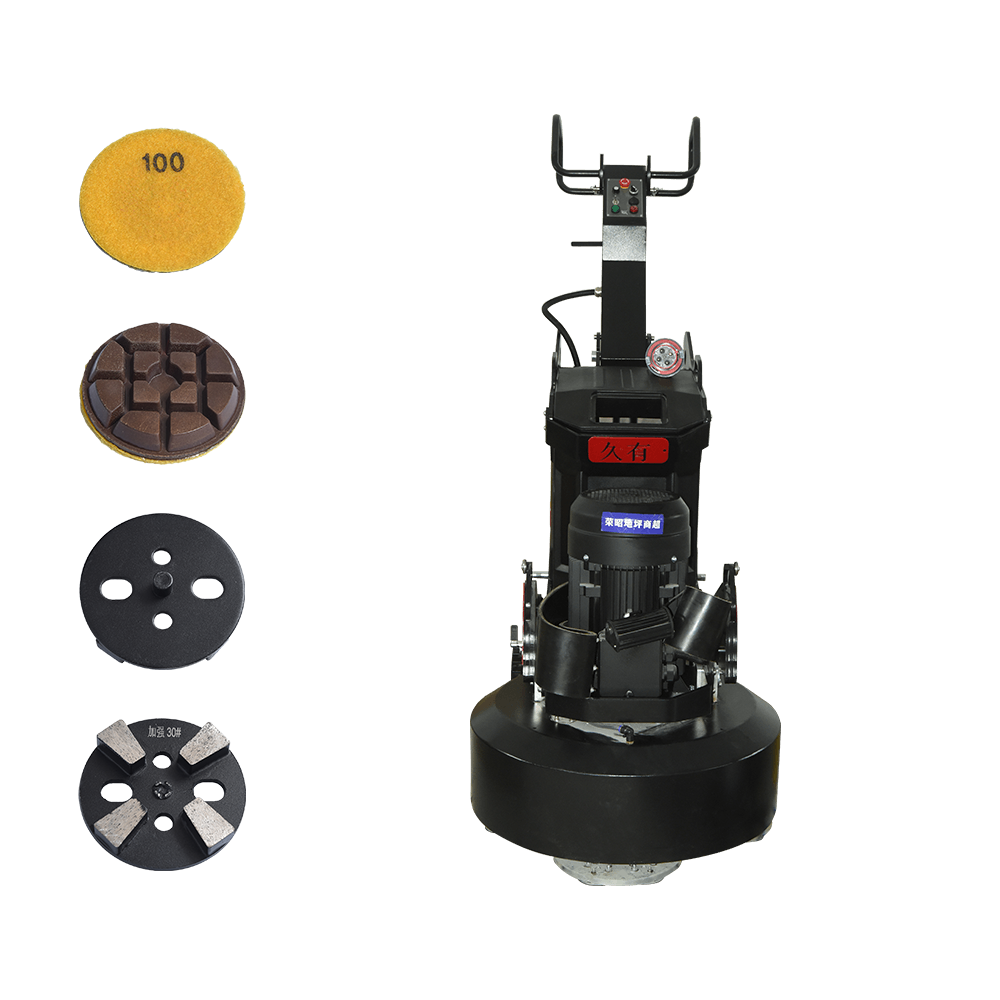

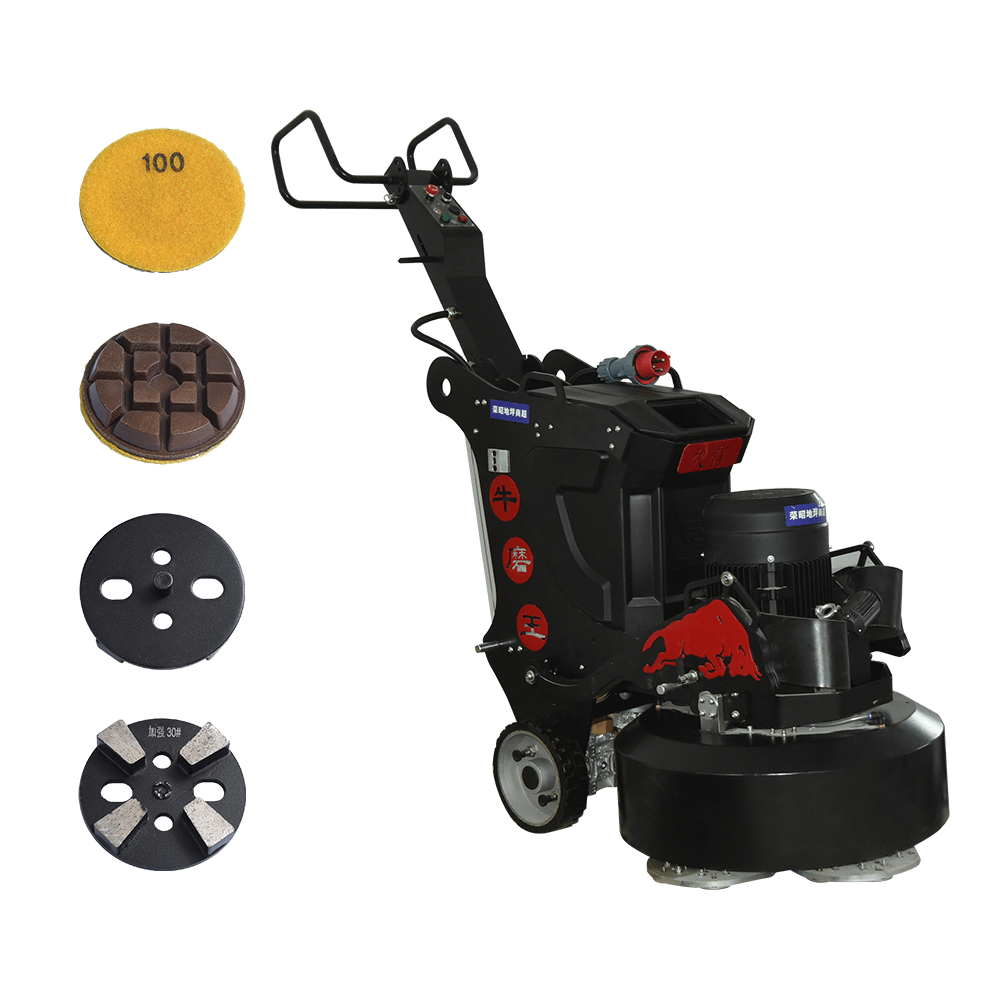

Dual drive JY-850E grinding machine

It adopts EMM main motor of 18.5 kW, frequency converter of 22 kW VEICHI AC70, rocker-type counterweight, 3-level adjustment, put it in the front to increase the grinding, and put it in the back to cooperate with the pressing machine. The counterweight is 30 kg, a total of 60 kg on both sides, and the whole machine weighs 720 kg. , pull ring type adjustment handle, the lamp can be placed at will, the small plate is 32cm, the rubber pad has a steel sleeve, the chassis screws are 4 medium-strength magnetic screws, dynamic balance test, circular test balance, to prevent machine shake and instability, similar For automobile four-wheel drive positioning, grinding cast-in-place slabs takes 8 hours to grind 1,000 square meters. Grinding wear-resistant floors before 150 mesh can be worth two 700. After 300 mesh, it is almost the same as 700. The large plate grinds 0~300 rpm, and the small plate grinds 0~1800 rpm. The walking speed is adjustable, the dual-drive 850 comes with a wireless remote control, the remote control range is 100 meters, and the pendant program signal will not cause no signal or signal interruption. The front and rear gears of the button are self-locking, and the left and right gears must be operated according to the direction. Each wheel is equipped with a 750-watt motor and a VEICHI inverter, a reducer with 17.5 turns, and a remote control distance of 100 meters. When turning, the wheels rotate in tandem and at the same time, reducing resistance and rotating faster, which protects the wheels. The 850 can be moved by unplugging the two indexing pins during the field operation. The 850 can be lifted with a forklift or two small yellow trucks at the same time. The small inverter controls the left wheel at the top and the right wheel at the bottom. When turning 380V to 24V, when opening the remote control: the counterweight iron is placed Go to the front, place 12 cutter heads below, and adjust the walking speed to 2.5 to 3. Adjust the grinding speed to about 900 to 1000 to open the noodles.

PREV：No previous article
NEXT：JY-700A grinding machine
Get A Quote
  • Contact Us

Related Products

About Jiuqi

Ningbo Jiuqi International Trade Co., Ltd. is a combination of industry and trade enterprises, committed to the production of diamond grinding, floor grinding machine and floor polishing machines, sweeping machines, milling machines,s and other floor machinery, the use of unique manufacturing technology, is a diversified production, manufacturing, and sales of large-scale companies, based on high grade and high-end market, As a professional China Dual drive JY-850E grinding machine supplier and Dual drive JY-850E grinding machine company, The company's products are mainly exported to the United States, Germany, Japan, Spain, Italy, the United Kingdom, South Korea, Australia, Canada, Southeast Asia and other dozens of countries, the company's domestic cooperation customers have many construction machinery consumables of the main engine factory customers, has become the company in China's floor building materials industry, important suppliers.

Highly specialized staff.
200+ successfully executed projects.
Excellent product quality and thoughtful customer service.

Integrity builds quality innovation and leads the future.

Recently News and Events
Share with you

  • 12 Jul,2024

    Advantages of Floor Grinding Machine Equipment？
    A floor grinder is a mechanical equipment used for ground treatment, mainly used for surface treatment of hard materials such as concrete, terrazzo, marble, granite, etc., to achieve a flat, smooth, o...

  • 12 Jul,2024

    Advantages of diamond grinding pads for flooring？
    Floor diamond grinding disc is a grinding tool used for ground grinding, usually used for surface treatment of hard materials such as concrete and stone. Here are some advantages of diamond grinding d...

  • 12 Jul,2024

    Advantages of floor milling machine equipment？
    A floor milling machine is a heavy-duty mechanical equipment used to remove surface materials from the ground, mainly used for surface treatment of hard materials such as concrete, asphalt, and stone....

Industry knowledge Extension

Product and Industry Analysis: Dual Drive JY-850E Grinding Machine

Company Overview: Ningbo Jiuqi International Trade Co., Ltd.

Ningbo Jiuqi International Trade Co., Ltd. integrates industrial and trade functions, specializing in the production of advanced floor machinery, including diamond grinders, floor grinding and polishing machines, sweeping machines, and milling machines. With a commitment to high-grade, high-end markets, the company utilizes unique manufacturing technologies to produce diversified and high-quality equipment. Its products are exported globally to countries such as the United States, Germany, Japan, and more, and are used domestically in numerous construction and machinery applications. The company’s reputation as a key supplier in China’s floor building materials industry is supported by its extensive range of equipment and innovative technology.

Product Focus: Dual Drive JY-850E Grinding Machine

Product Features:

  1. Powerful Motor and Drive System:

    • The JY-850E features an 18.5 kW EMM main motor and a 22 kW VEICHI AC70 frequency converter, providing robust power and efficient performance for heavy-duty grinding tasks.

  2. Adjustable Counterweight:

    • The machine includes a rocker-type counterweight with 3-level adjustment, allowing users to modify the weight distribution for optimal grinding efficiency. The counterweight setup totals 60 kg, enhancing stability during operation.

  3. High Durability and Stability:

    • Weighing 720 kg, the JY-850E is designed for stability and durability. It includes dynamic balance testing and circular test balance to prevent machine shake and ensure smooth operation.

  4. Versatile Grinding Capability:

    • Capable of grinding 1,000 square meters of cast-in-place slabs in 8 hours, the JY-850E is suitable for both initial grinding and fine grinding tasks. It can handle wear-resistant floors with mesh sizes up to 300 and adjust grinding speeds from 0-300 rpm for large plates and 0-1800 rpm for small plates.

  5. Remote Control and Mobility:

    • The machine comes with a wireless remote control with a range of 100 meters, offering convenience and ease of operation. It features a pull-ring adjustment handle, adjustable walking speed, and the ability to be moved by forklifts or small trucks.

  6. Advanced Wheel and Gear System:

    • Each wheel is equipped with a 750-watt motor and VEICHI inverter, ensuring efficient and smooth operation. The self-locking front and rear gears and tandem wheel rotation help reduce resistance and protect the wheels during turning.

Product Advantages:

  1. Enhanced Efficiency:

    • The combination of a high-power motor and advanced inverter technology allows for efficient and rapid grinding, making the JY-850E suitable for large-scale projects and heavy-duty tasks.

  2. Customizable Operation:

    • The adjustable counterweight and grinding speeds provide flexibility for various grinding requirements, from coarse to fine finishes. This adaptability enhances the machine's effectiveness across different surface types and conditions.

  3. Stable Performance:

    • The machine's weight, dynamic balance testing, and advanced wheel system ensure stability and prevent shake, contributing to high-quality, consistent grinding results.

  4. User-Friendly Features:

    • The wireless remote control and adjustable walking speed simplify operation, improving user convenience and allowing for precise control over the grinding process.

  5. Durability and Protection:

    • The robust construction and tandem wheel rotation system protect the machine and extend the lifespan of the wheels, reducing maintenance needs and operational downtime.

Industry Knowledge and Application:

Floor Grinding Machine Market: The market for floor grinding machines is driven by the need for efficient surface preparation in construction, renovation, and maintenance projects. With increasing demand for high-quality finishes and the ability to handle various floor types, machines like the JY-850E play a crucial role in meeting industry requirements.

Importance of Grinding Equipment: Effective grinding is essential for achieving smooth, durable surfaces and preparing floors for subsequent treatments or coatings. High-performance grinding machines are critical in ensuring that surfaces are properly prepared, which impacts the quality and longevity of the final finish.

Technological Trends: Advancements in motor technology, inverter controls, and remote operation are shaping the floor grinding machine industry. Machines that incorporate these technologies offer enhanced performance, precision, and ease of use, aligning with the needs of modern construction and renovation projects.

Competitive Positioning: Ningbo Jiuqi's JY-850E grinding machine stands out due to its powerful motor, adjustable features, and advanced control systems. These attributes position it competitively in the market, catering to high-end projects and demanding applications where efficiency and quality are paramount.
